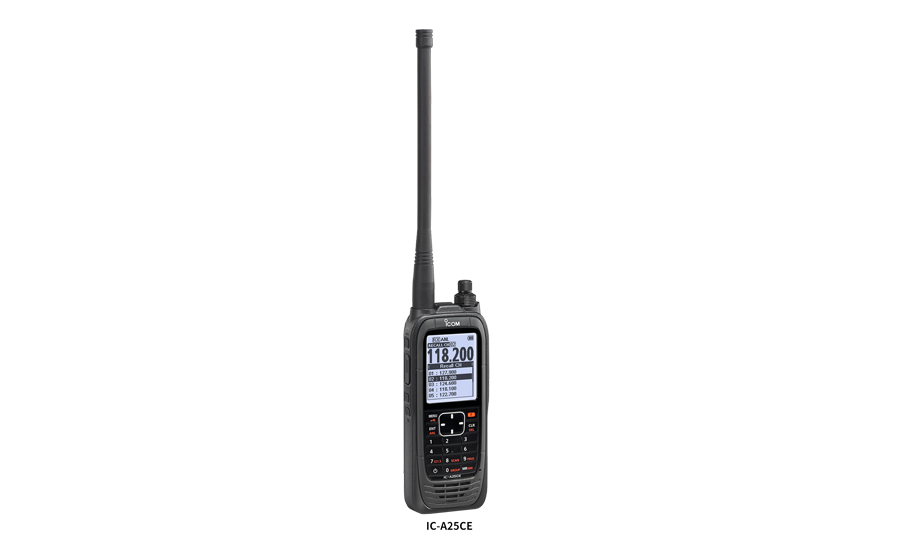

IC-A25CE

395.00

VHF AIR BAND TRANSCEIVERS

Quantity:

VHF AIR BAND TRANSCEIVERS

General		IC-A25CE
Frequency range		118.000–136.992 MHz
Number of memory channels		300 channels/15 groups
Channel spacing		25/8.33 kHz
Type of emission		6K80A3E, 5K00A3E
Power supply requirement		7.2 V DC (BP-288), 11.0 V DC (External DC Jack)
Current drain (approximately)	Tx High	Less than 1.8 A
	RX Max. audio/Stand-by	Less than 500 mA/90 mA typ. (GPS, Bluetooth, Light: OFF)
Antenna impedance		50 Ω
Operating temperature range		−20 °C to +55 °C
Dimensions (W × H × D) (Projections not included)		58.9 × 148.4 × 31.8 mm
Weight (approximately)		340 g (with BP-288)
Transmitter
Output power (at 7.2 V DC)		6.0/1.8 W (PEP/carrier)
Audio harmonic distortion		Less than 10% (at 85% modulation)
Harmonics Spurious emissions		Less than −36 dBm (except operationg frequency ±1 MHz)
Frequency stability		±1 ppm
Receiver
Intermediate frequencies		46.35 MHz/450 kHz (1st/2nd)
Sensitivity		Less than 0 dBμ (with CCITT filter)
Squelch sensitivity (at threshold)		Less than 0 dBμ
Adjacent channel rejection		More than 60 dB
Spurious response		More than 70 dB
Hum and noise		More than 40 dB (at 90% modulation)
Audio output power	External speaker	530 mW typical (AM 8 Ω/60% Mod at 10% distortion)
	Internal speaker	1200 mW typical (AM 8 Ω/60% Mod at 10% distortion)
Ext. speaker connector		3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
