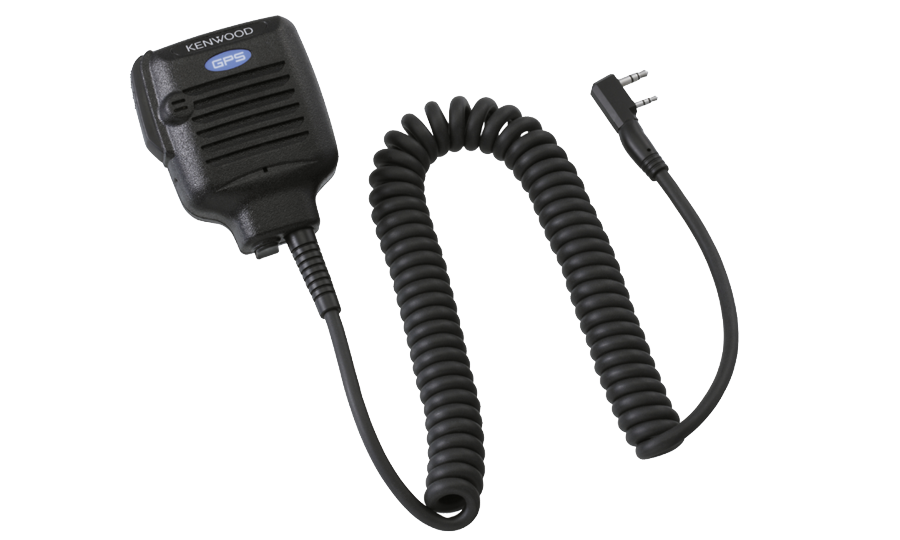

KMC-48GPS

GPS Speaker Microphone

Speaker Microphone with Integral GPS Unit

Built-in GPS Module with integral Lithium Battery

Event-Controlled GPS Auto-Reporting for FleetSync & NEXEDGE. PTT, Emergency, Status Messaging and Timed Reporting

Manual "Send GPS" Key

Dispatcher-Controlled Auto-Polling and Manual GPS Requests

NMEA 0183 Format, L1 Band, 1Hz Updating Cycle

Positioning Start-Up Times - Cold/Warm/Hot = 40/38/8 seconds at room temperature

Includes Noise-Cancelling Microphone Element

Programmed via radio software

Compatible with Kenwood KAS-10 AVL/Messaging software

With Kenwood 2-Pin connector for non-systems analogue portables TK-2170/3170 and TK-2360/3360.

NOTE - see your dealer to check compatibility with your radios' serial numbers.

Current drain	Less than 65mA
Earphone Jack Socket	Yes, 3.5 mm
Maximum Speaker Input Power	1.6W
Microphone Impedance	2200 Ohms
Microphone Sensitivity	-45dB ±5dB @ 300 Hz (0 dB = 1 V/Pa)
Operating Temperature Range	-30 °C to + 60 °C
Operating Voltage Range	4 V ~ 10 V DC
Speaker Impedance	16 Ohms ± 15% @ 1.0V 1.2kHz
Speaker Rated Audio Input Power	0.8W
Dimensions	W x H x D - 62 x 81 x 36 mm
Weight	230g
