TK-8302H

295.05

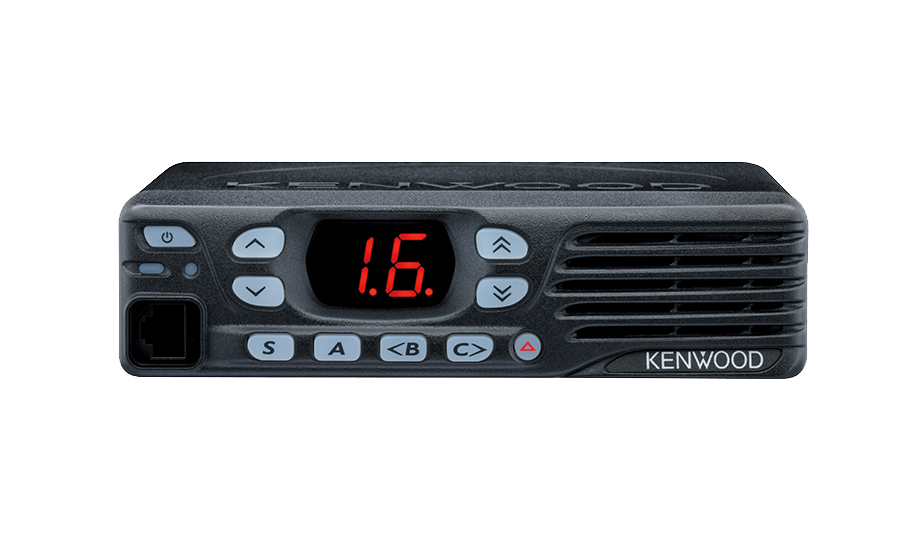

UHF BASE TRANSCEIVER WITH KMC30 MICROPHONE 45W

Quantity:

KENWOOD's new TK-8302 delivers reliable mobile performance with extra wideband coverage (UHF: 70MHz) and such features as QT/DQT signaling, multiple scan functions and a voice inversion scrambler. Yet this tough IP54/MIL-STD-compliant radio is decidedly user-friendly, providing high-quality audio, voice announcement, and a large display with adjustable brightness for simple operation, day and night.

Extra wideband coverage (UHF: 70MHz)
IP54/MIL-STD-compliant radio
16 Channels, 2 Zones
Enhanced KENWOOD Audio
External D-SUB 15-PIN Interface
QT/DQT/DTMF
FleetSync® PTT ID, SelCall & Status
2-Tone (Encode/Decode)
MDC-1200 Signaling
PTT ID Encode, Stun/Revive Decode, Emergency Encode)
Programmable Voice Inversion Scramble
Programmable Blue LED
GPS Feature(Optional GPS Receiver)
Multiple Scan Functions, including Priority Scan
Independent Setting Per Channel (compander, scrambler)
9 Programmable Function Keys
Horn Alert Function
3-colour LED (red, orange, green)
Voice Announcement
Minimum Volume Setting
Password Protection
Microsoft Windows® PC Programming & Tuning

Multiple Scan Functions, including Priority Scan
Independent Setting Per Channel (compander, scrambler)
BCL (Busy Channel Lockout)
9 Programmable Function Keys
Talk Around
Horn Alert Function
Companded Audio (narrow/wide)
3-colour LED (red, orange, green)
Voice Announcement (choice of language between English, Spanish, French, German, Italian, Dutch, Russian and Chinese)
Password Protection
Time-out Timer
Minimum Volume Setting (by FPU)
Operator Selectable Tone Settings
Embedded Message
8 Programmable Accessory Ports (for External Control)
Scan Del/Add Function
KENWOOD ESN (Electronic Serial Number)
Radio Stun
Adjustable Microphone Gain (FPU only): High/Normal
Microsoft Windows® PC Programming & Tuning

		TK-8302	TK-8302H
GENERAL
Frequency Range	Type 1	450~520 MHz
	Type 2	400~470 MHz
Number of Channels	Zone	2
	Channel	Max.16
Channel Spacing		12.5 kHz / 25 kHz
Operating Voltage		13.6 V DC±15 %
Current Drain	Standby	0.4 A	0.4 A
	Receive	1.0 A	1.0 A
	Transmit	8.0 A	14.0 A
Operating Temperature Range		-22 °F ~ +140 °F (-30 °C ~ +60 °C)
Frequency Stability		?2.5 ppm (-22 °F ~ +140 °F )
Antenna Impedance		50 Ω
Dimensions (W x H x D), Projections not included		160 mm x 43 mm x 137 mm
Weight (net)		1.18 kg
RECEIVER (Measurements made per EIA/TIA-603)
Sensitivity (12dB SINAD)	Wide	0.28 µV
	Narrow	0.35 µV
Selectivity	Wide	75 dB
	Narrow	65 dB
Intermodulation Distortion	Wide	70 dB
	Narrow	60 dB
Spurious Response		75 dB
Audio Output (4 Ω impedance)		4 W with less than 5 % distortion
TRANSMITTER (Measurements made per EIA/TIA-603)
RF Output Power		5 W ~ 25 W	5 W ~ 45 W*1
Spurious Response		70 dB
Type of Emission	Wide	16K0F3E
	Narrow	11K0F3E
FM Hum & Noise	Wide	45 dB
	Narrow	40 dB
Microphone Impedance		600 Ω
Audio Distortion	Wide	3%
	Narrow	5%
