TK-8360H

340.20

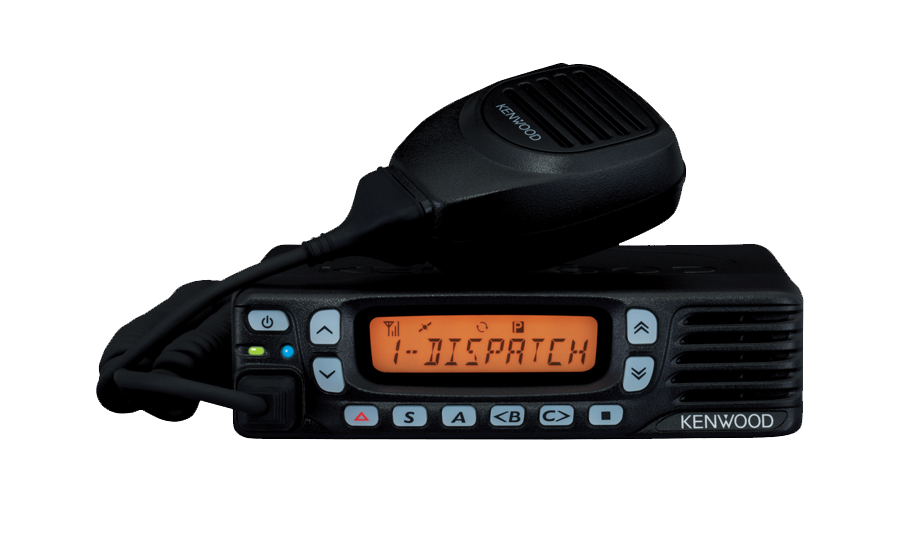

UHF FM Mobile Radios (TK-8360H WITH KMC-30)

Quantity:

KENWOOD's new TK-8360 offers extra wideband coverage (UHF: 70MHz) and a wealth of user-friendly features. The bright 10-character, 13-segment LCD clearly displays all essential information, including status messages, ID and GPS info. Also available are 10 programmable function keys, QT/DQT signaling and multiple scan functions to ensure superb performance 24/7.

25/45 W (450/520 MHz) Model
25/45 W (400/470 MHz) Model
128 CHANNELS, 128 ZONES
ENHANCED KENWOOD AUDIO
EXTERNAL D-SUB 15-PIN INTERFACE
10 PROGRAMMABLE FUNCTION KEYS
STATUS MESSAGES
QT/DQT/DTMF SIGNALING
FleetSync® PTT ID, SELCALL & STATUS
2-TONE (encode/decode)
MDC-1200 SIGNALING
EMERGENCY ALERT (DTMF, FleetSync® or MDC-1200 signaling)
PROGRAMMABLE BLUE LED
GPS FEATURE(Optional GPS Receiver)
VOICE GUIDE & STORAGE OPTION (VGS-1)
MULTIPLE SCAN FUNCTIONS
VOTING FUNCTION
PROGRAMMABLE VOICE INVERSION SCRAMBLER
INDEPENDENT SETTING PER CH(Compander, Scrambler)
ALK AROUND
MINIMUM VOLUME SETTING
OPERATOR SELECTABLE TONE SETTING
8 PROGRAMMABLE ACCESSORY PORTS (for external control)
SCAN DELETE/ADD FUNCTION
ADJUSTABLE MICROPHONE GAIN

The TK-8360 includes 5-Tone selective calls in 6-different formats, EIA, EEA, CCIR, ZVEI, ZVEI2 and the Kenwood format, and it also can include GPS position data. The built-in programmable voice inversion scrambler provides basic protection against casual eavesdropping.

GENERAL
Frequency Range Type 1 Type 2	450~520 MHz 400~470 MHz
Number of Channels/ Zones	128 / 128
Channel Spacing Wide / Narrow	25 kHz / 12.5 kHz
Operating Voltage	13.6 V DC±15 %
Current Drain Standby Receive Transmit (M / H)	0.4 A 0.4 A 1.0 A 1.0 A 8.0 A 14.0 A
Operating Temperature Range	-30 ºC ~ +60 ºC
Frequency Stability	±2.5 ppm ( -30 ºC ~ +60 ºC )
Antenna Impedance	50 Ω
Dimensions (W x H x D), Projections not included	160 mm x 43 mm x 136 mm
Weight (net)	2.0 kg
Sensitivity (12dB SINAD) Wide Narrow	0.28 µV 0.35 µV
Selectivity Wide Narrow	75 dB 65 dB
Intermodulation Distortion Wide Narrow	70 dB 65 dB
Spurious Response	75 dB
Audio Output (4 Ω impedance)	4 W with less than 5 % distortion
TRANSMITTER (Measurements made per EIA/TIA-603)
RF Power Output	5 W ~ 45 W
Spurious Response	70 dB
Type of Emission Wide Narrow	16K0F3E 11K0F3E
FM Hum & Noise Wide Narrow	45 dB 40 dB
Microphone Impedance	600 Ω
Audio Distortion Wide Narrow	3 % 5 %
